SPECIFICATIONS



Aerial Photography: Yes



Aircraf Operating Frequency: 2.4 GHz

Angle of View[Horizontal FoV X°, Vertical FoV X°, Diagonal FoV X°]: 155°

Camera Features: 4K HD Video Recording,GoPro Compatible

Camera Integration: Camera Included

Camera Mount Type: Fixed Camera Mount

Connectivity: Remote Control

Drone Battery Capacity: 6S 1400mAh

Drone Control Methods: Remote controller control

Drone Weight: 427±5g

Equipped with Aerosol Spraing System/Spread Tank Volume: No

FPV Operration: Yes

GPS: No

Gyro: BLITZ E55S 4-IN-1

Integrated propeller guard: Not Include

Loudspeaker: No

Max Takeoff Weight: <1kg

Max Wind Speed Resistance: < 10 KM/H

Maximum Altitude[m]: 7000m

Maximum Horizontal Speed[m/s]: 190km/h

Motor Type: Brushless Motor

Obstacle avoidance types: No support

Operating Temperature[°C]: -10℃-40℃

Recommended age[Years]: 14+

Remote Controller Battery Capacity[mAh]: 500/900mAh

Remote Distance: 1km

Removable/Replaceable Battery: Yes

Spotlight: No

Stobe: No

Transmission Range: others

Transmitter Power[dBm]: 5.1GHz-30dBm

Video Format[Name/Type]: MP4

Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）

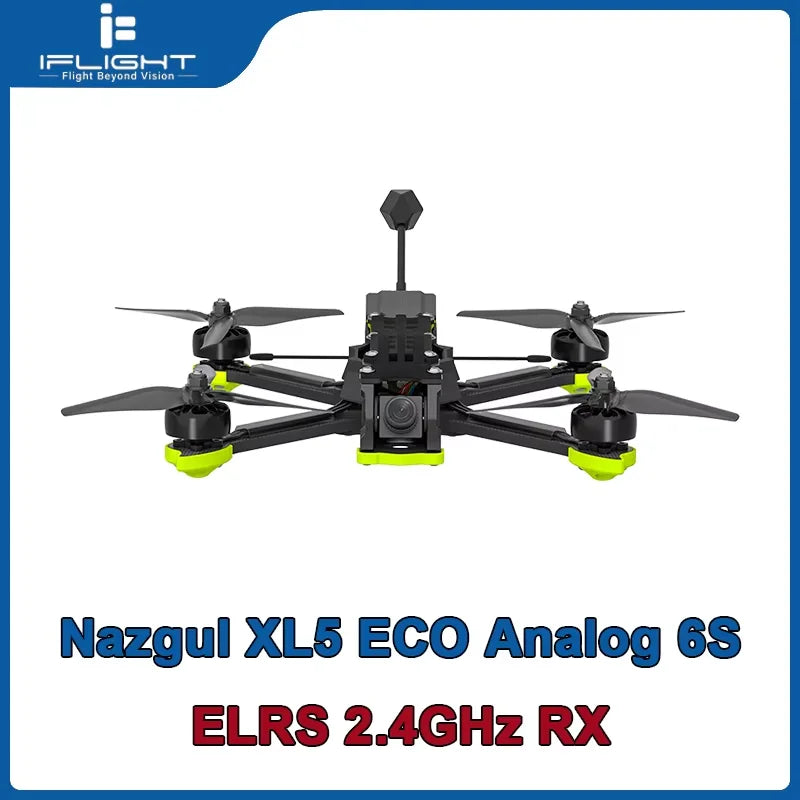

iFlight Nazgul XL5 ECO V1.1 Analog 6S Drone BNF with BLITZ 5.8G 1.6W VTX / BLITZ ATF435 E55S Stack for FPV Quadcopter

Description：

Introducing Nazgul XL5 ECO - the 5-inch standard Freestyle drone that redefines performance and value. Featuring an ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability. The carbon fiber with aluminum camera mount offers lightweight durability, while the included GoPro mount provides versatility for capturing your epic freestyle flights. Take your flying experience to new heights with Nazgul XL5 ECO.

Changelog

• June 28, 2024: Battery Plug updated to fixed form. The drone upgraded to V1.1.

• Sept. 10, 2024: Product upgrade, the side panels will be installed by default.

Highlights

Lightweight and Durable

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.

Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Enhance user experience and streamline maintenance

Equipped with a built-in buzzer and receiver mount, convenient maintenance and adjustments to the receiver.

DIY customized space

Create your own personalized space with the flexibility of standard 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.

Specifications：

• Product Name: Nazgul XL5 ECO V1.1 6S Analog

• Geometry: True-X

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 ESC

• Video Transmission: BLITZ 1.6W VTX

• Frame: 245mm wheelbase

• Motor: XING-E Pro 2207 1800KV motors

• Prop: Nazgul F5 propellers

• Weight: 427g

• Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)

• Dimensions (L×W×H): 173×173×34±2 mm

• Diagonal Distance: 245mm

• Max Speed: 190 km/h (Manual Mode)

• Maximum Takeoff Altitude: 3200 m

• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)

• Max Wind Speed Resistance: Level 7

• Operating Temperature Range：-10° to 40° C (14° to 104° F)

• Antennas: Single Antenna

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

• Video Transmission

• Product Name: BLITZ 5.8G 1.6W VTX

• Output Power: PIT/25mW/400mW/800mW/1600mW

• Input Volts: 7-34V(2-8S)

• Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: MMCX

• Mounting Hole: 30.5×30.5/Φ3mm

• Weight: 18.9g (Antenna not included)

• Dimensions: 38.5×38.5mm

Packing List：

• 1 x Nazgul XL5 ECO 6S Analog BNF

• 1 x Antennas

• 2 x Battery pads

• 2 x Nazgul F5 Prop(Pairs)
