SPECIFICATIONS



Application: Desktop,Laptop,Server,Workstation



Bus Type: SATA III

Cache: None

Certification: CE,FCC,RoHS,weee

Controller: MAP1202

Cooling Fin: Yes

Interface Type: PCI Express,M.2 2280

MTBF: 1000000

Max Sequential Read: 3500

Max Sequential Write: 3150

Nand Flash Type: TLC

RGB: No

Size: M.2 2280

Style: SSD

Transport Protocol: NVME

Type: Internal



Specification:

Interface Type:M.2 2280 NVMe PCIe 3.0x4

Storage Medium:3D TLC NAND Flash

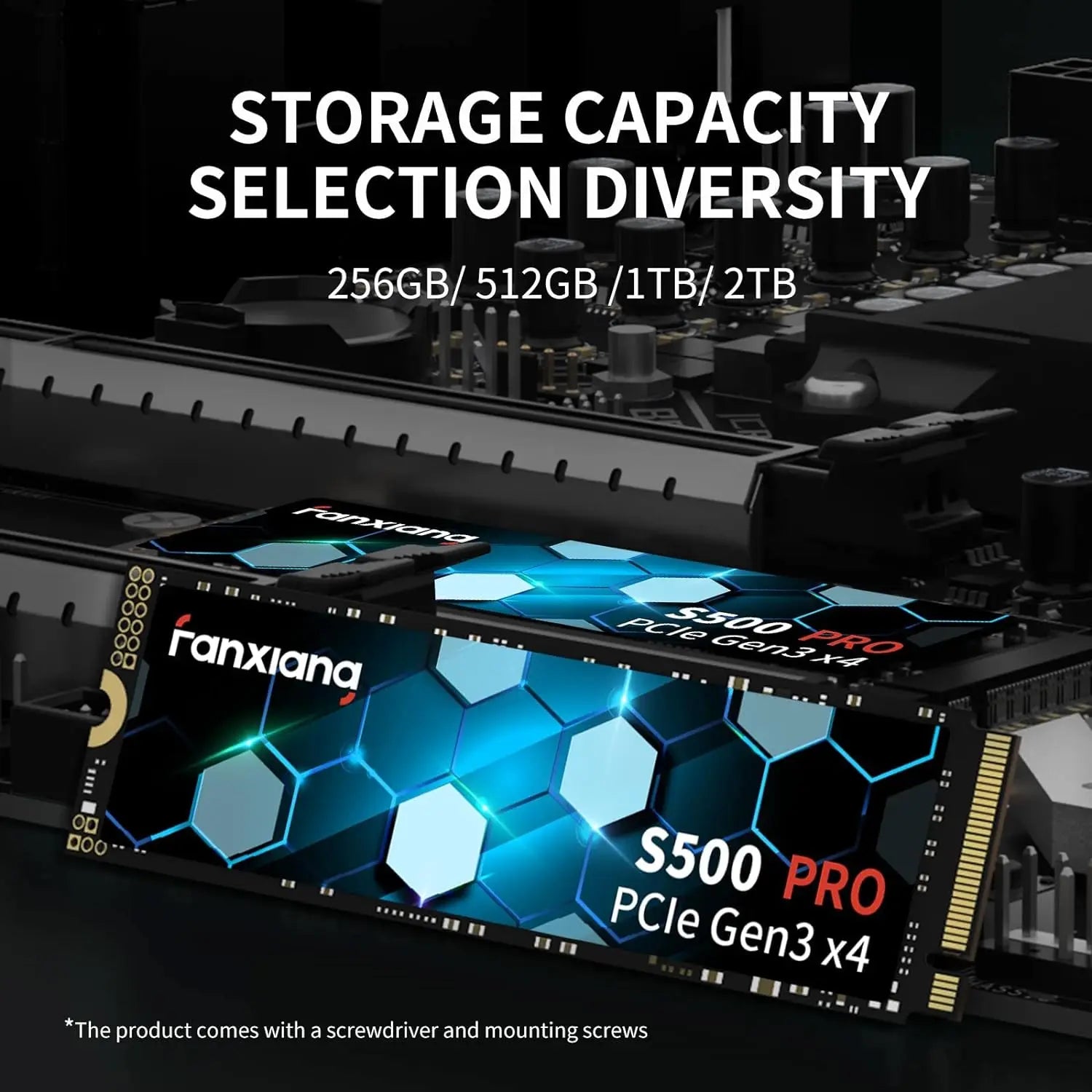

Capacity:

S500 Pro-256GB:Sequential Read Speed up to 2300 MB/s;Write Speed up to 1200 MB/s.Max to 200TBW

S500 Pro-512GB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 2700 MB/s.Max to 320TBW

S500 Pro-1TB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 3150 MB/s.Max to 640TBW

S500 Pro-2TB:Sequential Read Speed up to 3500 MB/s;Write Speed up to 3150 MB/s.Max to 1280TBW

Supported System:Windows 7/8/10.Mac OS 10.9 or later/Linux/Unix

Storage Temperature:-20℃∽+85℃

Operating Temperature:0℃∽+70℃

Size:80*22*2.4mm

Power:3.7W

Weight:≈40



Package Contents:

S500 Pro SSD x 1

Screwdriver  x 1

Screw x 1

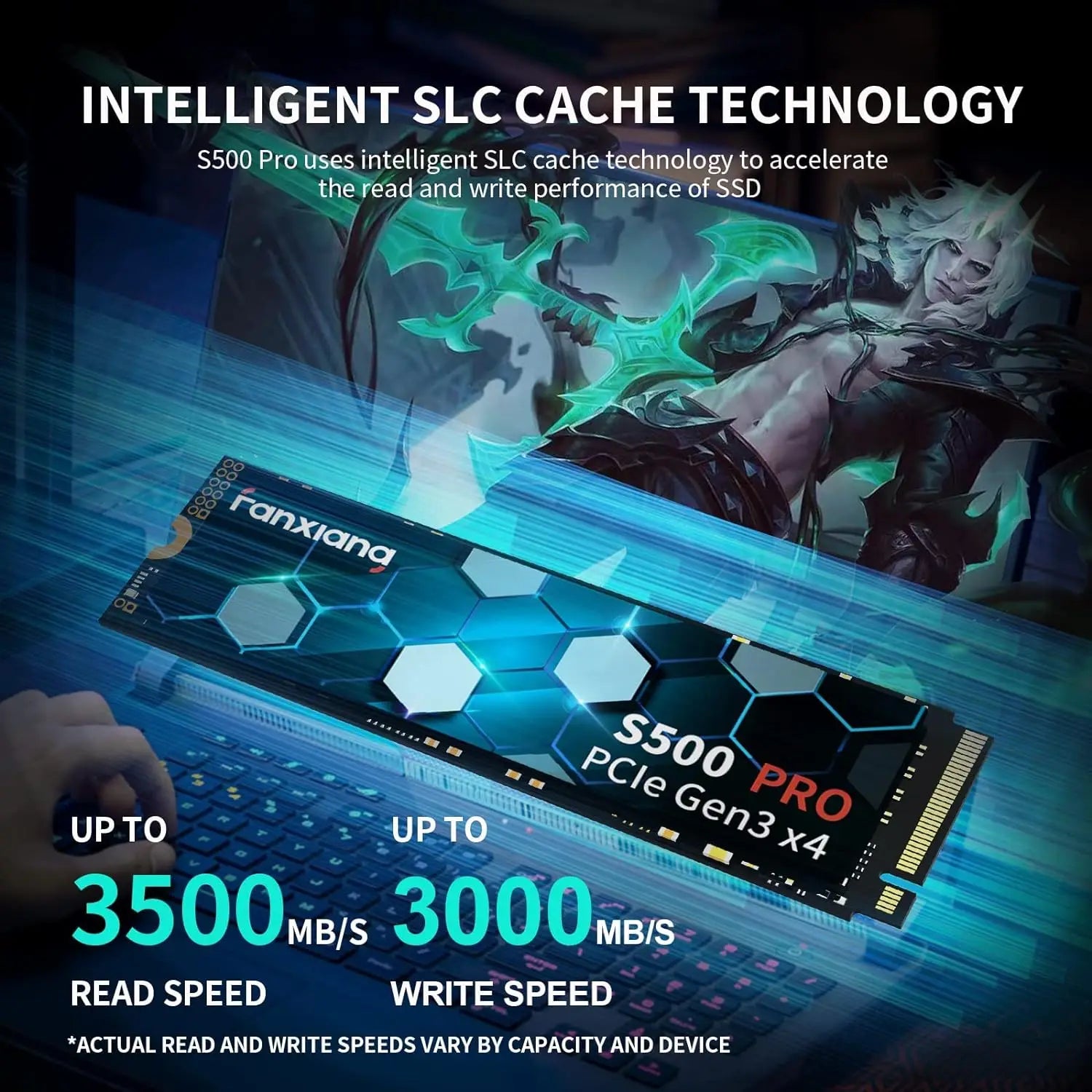

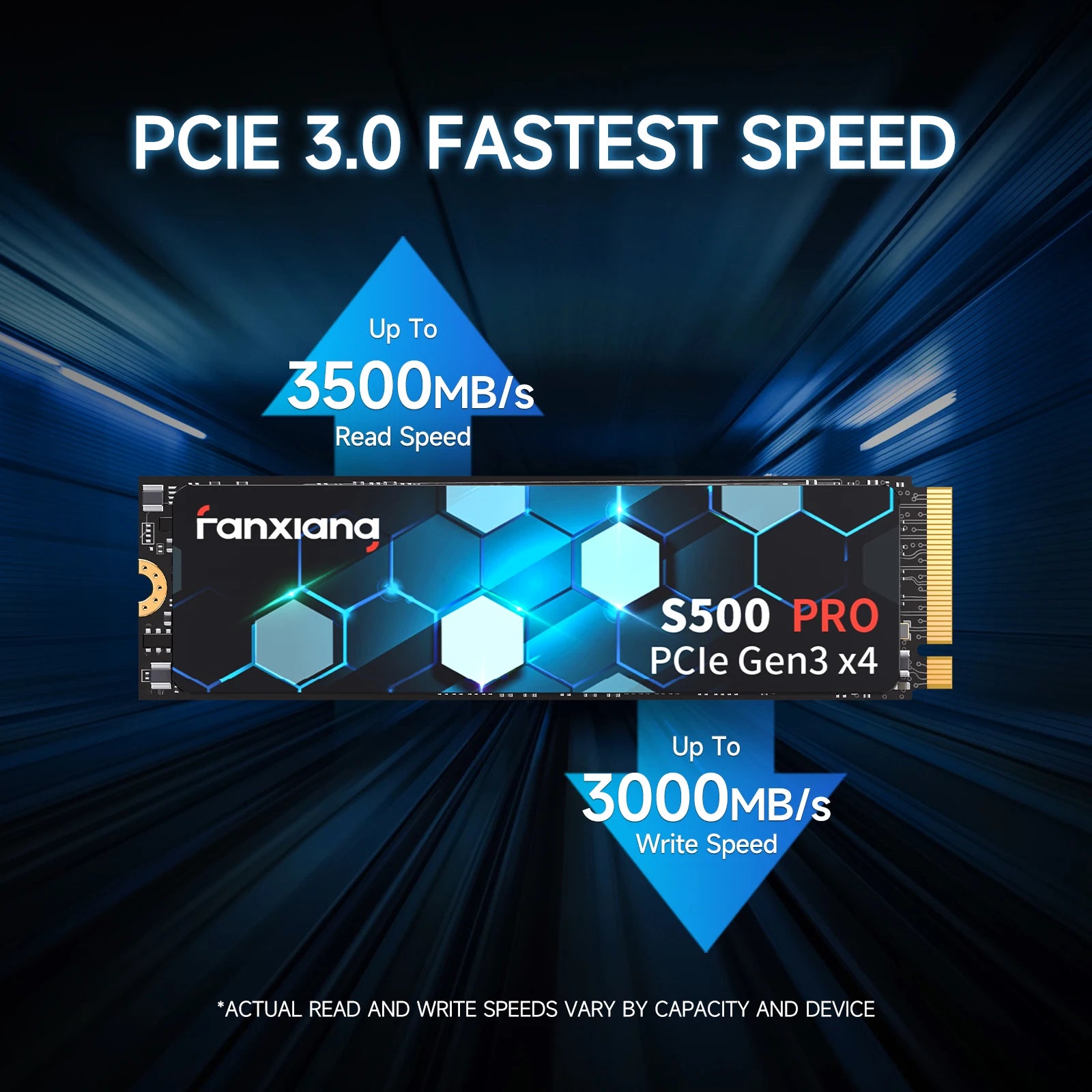

High-speed Transmission

Accelerate the reading and writing performance of solid-state hard drives through intelligent SLC cache technology, up to 3500/3000MB/s,greatly improving the speed of booting,program opening,game loading,file saving and transmission,etc

Excellent Performance

Fanxiang S500/S500 Pro M.2 SSD adds graphene heat dissipation stickers to provide effective heat dissipation control for internal ssd,improve its performance and service life, up to 640TBW (TeraBytes Written)

Preferred Chip

Fanxiang S500/S500 Pro ssd NVMe uses 3D NAND technology and high-quality TLC particles, which further improves product life and stability. There is no internal mechanical mechanism, good shock resistance, and high data security

Widely Compatible

Internal SSD is compatible with Windows7,8,10,11,Mac OS10.9,and later.Compatible with laptops,desktops,and all-in-one computers(computer motherboard must be equipped with M.2 interface)
